Power Dynamics PD528B UHF
The PD528 is a professional wireless microphone system equipped with 8x 100 channels and is designed for larger performances or events. The receiver with clear dynamic LCD displays ensures interference free transmission, together with the high-quality squelch and the PLL synthesizer. The PD528 microphone system operates in the 500-530 MHz band and is suitable for vocals, presentations, training and other PA-applications.
Descrizione
The PD528 is a professional wireless microphone system equipped with 8x 100 channels and is designed for larger performances or events. The receiver with clear dynamic LCD displays ensures interference free transmission, together with the high-quality squelch and the PLL synthesizer. The PD528 microphone system operates in the 500-530 MHz band and is suitable for vocals, presentations, training and other PA-applications.

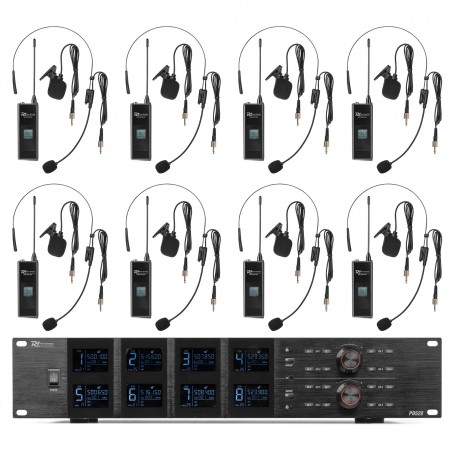

This set comes with a UHF 8 channels receiver, eight bodypack transmitters with rechargeable Li-ion battery, eight skin colour headsets, eight tie-clip microphones, two removable BNC antennas, two extender cables for front-mounting the antennas, a power adapter and an Aluminium case. Eight USB cables for charging the wireless microphones are also included.
◦Professional UHF wireless microphone system
◦Receiver with 8x 100 Selectable non-interfered UHF channels
◦LCD display showing RF level, AF level, Channel Frequency and mute status
◦Built-in USB power supply for charging the microphone batteries
◦8 Bodypack microphones with dynamic LCD display and mute function
◦Microphones including rechargeable battery
◦IR data transmission for channel selection
◦CPU controlled
◦FM modulation
◦HD Audio processing
◦8x balanced XLR outputs and mixed out
◦PLL oscillator
◦Suitable for 19 "rack
Microphone channels
100 channels
Frequency
500 - 530 MHz
Frequency response
50Hz - 18.000Hz
Sensitivity
-108dBm @ 12dB
THD
<0,5%
Microphone type
Condenser
Batteries
3.7V (18650 Li-ion cell)
Power supply
100-240VAC 50/60Hz (12V Adapter)
Power consumption
0.163 - 0.088A
Dimensions (L x W x H)
253 x 480 x 90mm
Weight (kg)
8.1
